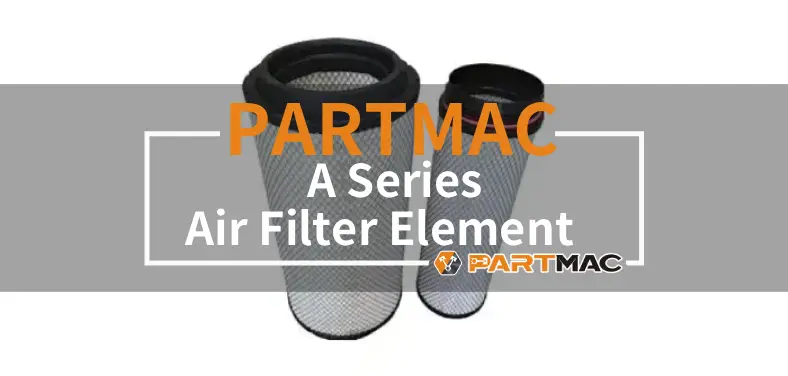

PARTMAC A Series/Air Filter Elements
The A Series Air Filter Element is a high-adaptability universal intake filtration component, specially designed for commercial vehicles, light construction machinery, small generator sets and various general power equipment. It is suitable for multiple working conditions such as regular operation and light dusty environments, serving as an ideal basic choice for intake filtration of industrial power equipment.
Adopting high-quality high-efficiency filter paper, paired with precise pleating technology and reinforced metal support frames as well as high-seal polyurethane end caps, it can efficiently capture dust, sand and other impurities in the air, completely eliminating unfiltered air bypass and ensuring intake air cleanliness.
Optimized with air flow channel design, the filter element features low intake resistance and stable dirt-holding capacity, along with excellent temperature and moisture resistance. It is easy to maintain and highly adaptable, effectively reducing internal engine wear, providing reliable intake protection for various power equipment, and acting as an economical and practical core filtration component.
General Specifications of A Series Air Filter Elements
| Series: | A Series Air Filter Elements |
| Filter Type: | Primary Air Filter Element, Dry Pleated |
| Dimensions: | OD≈φ220-370mm,ID 130-170mm Total Height≈320-500mm |
| Thread Specification: | Flange connection (142mm), snap-fit fixation |
| Filtration Precision: | Nominal 20μm, Absolute 10μm |
| Filtration Efficiency: | ≥99.9%(for particles ≥0.3μm) |
| Applicable Models/Platforms: | Cummins series,Komatsu super-large excavators, diesel engine, etc., etc. |
| Operating Conditions: | -40℃~120℃, Humidity 0~95%, Normal pressure |
| 10μm | ||||||||
| 10-20 μm | ||||||||
| 20μm | ||||||||
| 20 μm | ||||||||
| 10μm | ||||||||
| 10 μm | ||||||||
| 10μm | ||||||||
| 10-20 μm | ||||||||
| 10μm | ||||||||
| 10-20 μm | ||||||||
| 10μm | ||||||||
| 20 μm | ||||||||
| 10μm | ||||||||
| 10 μm | ||||||||
| 10μm | ||||||||
| 10 μm | ||||||||
| 10μm | ||||||||
| 10-20 μm | ||||||||
| 10μm | ||||||||
| 10-20 μm | ||||||||
| 10μm | ||||||||
| 10 μm | ||||||||
| 10μm | ||||||||
| 10 μm | ||||||||
| 10μm | ||||||||
| 20 μm | ||||||||
Filtration Precision /μm | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 |
Part Name | Filtration Precision | Filtration Efficiency | Part Name | Filtration Precision | Filtration Efficiency | ||
| AF00947 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF00935M 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF00934 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF04548 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF00890 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF00821M 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF00421M 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF25454 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF00891M 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF00872M 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF00883M 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF25278 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF00851M 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF00880 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF00899M 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF899M/AF880 | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF890/AF891-A 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF879M/AF857 | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF857/AF879M | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF26617/AF26618 | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF935M/AF934 | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF890/AF891M-A | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF26605 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF26569 00JX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| AF550578PJX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | AF553318PJX | Nominal 20μm, Absolute 10μm | ≥99.9%(for particles ≥0.3μm) | ||
| ——END—— | |||||||
PARTMAC A Series Air Filter Elements
This is the list of all series of PARTMAC A Series Air Filter Elements.
Click here to find Filter Element by type
Fleetguard AH19113-A-SET2 Air Filter Element
Applicable Series: Cummins Heavy Duty Engine Series
Part Name: Air Filter Assembly Set (includes housing + AF891M primary element + AF890M safety element)Part Number: AH19113-A-SET2Cummins OE Number: 3013210 (AF891M), 3013211 (AF890M)Applicable Platforms: Heavy Duty Truck, Construction Machinery
Fleetguard A478-020-AM Air Filter Element
Fleetguard Filters | A478-020-AM Air Filter Element
Applicable Series: Cummins Heavy Duty Engine Series (KTA19, KTA38, QSK19, QSK38, NT855, etc.)Part Name: Primary Air Filter Element (AF26624 equivalent)Part Number: A478-020-AMCummins OE Number: 4913882-29 (4913882)Applicable Platforms: Heavy Duty Truck, Construction Machinery (excavators, loaders, mining equipment), Generator Set, Marine Vessel, Oilfield Equipment Platforms
Fleetguard A460-SET2 Air Filter Element
Fleetguard Filters | A460-SET2 Air Filter Element
Applicable Series: Cummins Heavy Duty Engine Series (N14, KTA19/KTA38/QSK38, etc.)Part Name: A460-020/A460-030 Air Filter Element (primary & safety filter set)Part Number: A460-SET2 (Kit), A460-020 (Primary Element), A460-030 (Safety Element)Cummins OE Number: 4913975-29Applicable Platforms: Heavy Duty Truck, Construction Machinery (excavators, loaders, mining equipment), Generator Set, XCMG Machinery Platforms
Fleetguard A330209900 Air Filter Element
Fleetguard Filters | A330209900 Air Filter Element
Applicable Series: Cummins Engine Series (based on similar Fleetguard products)Part Name: Air Filter ElementPart Number: A330209900Applicable Platforms: Heavy Duty Truck, Construction Machinery, Generator Set, Marine Vessel Platforms
Fleetguard A041M938 Air Filter Element
Fleetguard Filters | A041M938 Air Filter Element
Applicable Series: Cummins 6BT5.9/6CT8.3 Engine SeriesPart Name: Air Filter Element (AF25129M/AF25130M equivalent, PU2841 type)Part Number: A041M938Applicable Platforms: 30-ton Excavator, Construction Machinery, Heavy Duty Truck, Generator Set
Fleetguard A040J048 Air Filter Element
Fleetguard Filters | A040J048 Air Filter Element
Applicable Series: Cummins 6BT5.9/6CT8.3 Engine Series, Heavy Duty Truck, Construction MachineryPart Name: Air Filter Element (AF25437/AF25523 equivalent, PU2852 type)Part Number: A040J048Applicable Platforms: Heavy Duty Commercial Vehicle, 32-ton Excavator, Construction Machinery, Generator Set
Fleetguard A147-SET2 Air Filter Element
Fleetguard Filters | A147-SET2 Air Filter Element
Applicable Series: Cummins K38/QSK38 Engine SeriesPart Name: A147-020/A147-030 Air Filter ElementPart Number: A147-SET2 (Kit), A147-020, A147-030Applicable Platforms: Heavy Duty Truck, Construction Machinery, Generator Set Platforms
Fleetguard A110-SET2 Air Filter Element
Fleetguard Filters | A110-SET2 Air Filter ElementApplicable Series: Cummins KTA19/KTA38/QSK19/QSK38 Engine SeriesPart Name: A110-020/A110-030 Air Filter ElementPart Number: A110-SET2 (Kit), A110-020, A110-030Applicable Platforms: Heavy Duty Truck, Construction Machinery, Generator, Marine Vessel Platform
Fleetguard A961-SET2 Air Filter Element
Fleetguard Filters | A961-SET2 Air Filter ElementApplicable Series: Dongfeng Kinland, Foton Auman, Shaanxi Auto Heavy Duty Truck SeriesPart Name: A961-020/A961-030 Air Filter ElementPart Number: A961-SET2 (Kit), A961-020, A961-030Applicable Platforms: Commercial Heavy Duty Truck, Construction Machinery Platform
Fleetguard A910-SET2 Air Filter Element
Fleetguard Filters | A910-SET2 Air Filter ElementApplicable Series: Construction Machinery Engine SeriesPart Name: A910-020/A910-030 Air Filter ElementPart Number: A910-SET2 (Kit), A910-020, A910-030Applicable Platforms: Construction Machinery, Industrial Power Equipment Platform
Fleetguard A746-SET2 Air Filter Element
Fleetguard Filters | A746-SET2 Air Filter Element
Applicable Series: Cummins K38/QSK38 Engine Series, Heavy Duty Truck Series, Construction Machinery SeriesPart Name: A746-020/A746-030 Air Filter Element (primary & safety filter set)Part Number: A746-SET2 (Kit), A746-020 (Primary Element), A746-030 (Safety Element)Applicable Platforms: Heavy Duty Commercial Vehicle Platform, Construction Machinery Platform
Fleetguard A415-SET2 Air Filter Element
Fleetguard Filters | A415-SET2 Air Filter Element
Applicable Series: Cummins K38/QSK38 Engine Series, Heavy Duty Truck Series, Construction Machinery SeriesPart Name: A415-020/A415-030 Air Filter Element (K3052 type, primary & safety filter set)Part Number: A415-SET2 (Kit), A415-020 (Primary Element/AF26563), A415-030 (Safety Element/AF26564)Applicable Platforms: Heavy Duty Commercial Vehicle Platform, Construction Machinery Platform (excavators, loaders, mining equipment)
Fleetguard A749-SET2 Air Filter Element
Applicable Series: Heavy Duty Truck Series,Construction Machinery Series
Part Name: A749-020/A749-030 Air Filter Element
Part Number: A749-SET2 (Kit), A749-020 (Primary Element/AF25266), A749-030 (Safety Element/AF25267)Applicable Platforms: Heavy Duty Commercial Vehicle Platform, Construction Machinery Platform (excavators, loaders, bulldozers)
Fleetguard A813-SET2 Air Filter Element
Applicable Series: Heavy Duty Truck Series,Construction Machinery Series
Part Name: A813-020/A813-030 Air Filter Element (K3042 type)Part Number: A813-SET2 (Kit), A813-020, A813-030Applicable Platforms: Commercial Heavy Duty Truck Platform, Construction Machinery Platform
Fleetguard A911-SET2 Air Filter Element
Fleetguard Filters | A911-SET2 Air Filter ElementApplicable Series: D6135 Engine Series (for construction machinery, marine & power generation applications)Part Name: A911-020/A911-030 Air Filter Element (K2640 type)Part Number: A911-SET2 (Kit), A911-020 (Primary Element), A911-030 (Safety Element)Applicable Platforms: D6135 Engine Platform, Construction Machinery Platform (including T180 bulldozers, excavators), Marine & Power Generation Equipment Platform
Fleetguard A934-SET2 Air Filter Element
Fleetguard Filters | A934-SET2 Air Filter ElementApplicable Series: Dongfeng Tianlong KL/VL, Tianjin KR SeriesPart Name: AA902748PJX Air Filter ElementPart Number: A934-SET2 (Kit), AA902748PJX (Single Element)Applicable Platforms: Dongfeng Commercial Vehicle Medium & Heavy Duty Truck Platform
