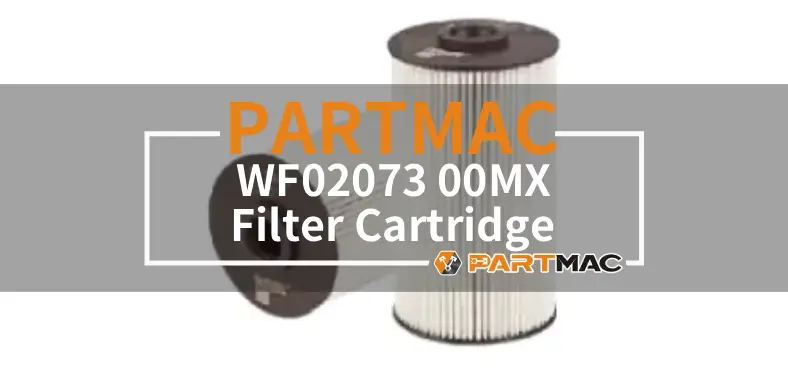

Fleetguard WF02073 00MX Water Filter Cartridges

WF02073 00MX is a high-performance water filter cartridge specially designed for industrial circulating water, cooling systems and general water treatment applications. It adopts high-precision filter material and stable structure, which can effectively intercept sediment, rust, suspended solids and particulate impurities to stably protect downstream equipment.

The cartridge features excellent water flow and dirt-holding capacity, fits standard filter housings, and is easy to install and replace. With excellent temperature and chemical resistance, it ensures stable operation and low pressure drop, prolonging the system maintenance cycle.

Widely used in machinery, HVAC, water treatment equipment and other fields, it provides stable protection for water purification and equipment safety with reliable filtration performance, long service life and standardized compatibility, making it an ideal pre-treatment component for industrial and commercial water systems.

Advantages of  WF02073 00MX Water Filter Cartridges

  • High and stable filtration efficiency: Precisely intercepts impurities with high efficiency and stable effluent clarity, protecting equipment from abrasion.

  • Excellent dirt-holding and flow performance: Large dirt-holding capacity, smooth water flow and low pressure difference, ensuring stable water efficiency during long-term operation.

  • Durable and reliable material: Resistant to high temperature and corrosion, with firm structure and long service life.

  • Strong universal compatibility: Standard size design, compatible with most conventional filter housings, easy to install and replace.

Technical Specifications

Part Number:
WF02073 00MX
Filter Type: Spin-on Water Filter Cartridge / Coolant Filter
Dimensions: OD 94 mm × Height 136 mm
Connection Specs 11/16-16 UN
Filtration Precision: 25 μm
Filtration Efficiency: ≥99%
Applicable Models/Platforms: Cummins series, construction machinery, etc.
Operating Conditions: Temperature -15°C ~ 105°C, Pressure ≤ 0.6 MPa
Lead Time: 15 – 30 Working Days
Payment Terms: T/T ,L/C
your 360 images

Filter Model

Dimensions

Connection Specs

Filtration Precision

Filtration Efficiency

WF02073 00MX OD 94 mm × Height 136 mm 11/16-16 UN 25μm ≥99%
WF02107 00MX OD 93.7 mm × Height 105.4 mm 11/16-16 UN 5μm ≥99%
WF02075 00MX OD 93.7mm × Height 136.5mm 11/16-16 UN-2B 5μm ≥98.7%
WF02074 00MX OD 93 mm × Height 137 mm 11/16-16 UN-2B 50μm ≥99%
WF02076 00MX OD 93 mm × Height 137 mm 11/16-16 UN-2B 50μm ≥99%
WF02071C 00MX OD 93.2 mm × Height 105.7mm 11/16″-16 UN-2B 2μm ≥98%
——END——

General Infomation of DCEC C220-10A Automotive Engine

Engine Model C220-10A Advertised Power 220 HP @ 2400 RPM
Peak Torque 780 N.m @ 1500 RPM Curve&Datasheet FR 91484
Fuel System Bosch P7100 Pump No. Of Cylinders 6
Aspiration Turbocharged & Air Intercooler Displacement 8.3 L
Bore * Stroke 114 mm * 135 mm CPL Code Revision 8418
Dry Weight  617 kg Wet Weight  636 kg
Compression Ratio 17.3 : 1

Installation Data of DCEC C220-10A Automotive Engine

Center of Gravity. Distance From Front Face of Block 427 mm
Center of Gravity. Distance Above Crank Centerline(Above Crankshaft) 163 mm
Maximum Bending Moment At Rear Face of Block 1356 N.m
Maximum Crankshaft Thrust Bearing load limit- Intermittent load 3558 N
Maximum Crankshaft Thrust Bearing load limit-Continuous load 2670 N
Instantaneous Inertia At Rotating: (Without Flywheel)  N/A
Emissions Certification GB17691/GB14761
Idle Speed 800 RPM
Maximum Non-Load Speed 2720 RPM
Over Speed Performance (Within 15 Seconds) 3500 RPM
The Clutch Torque @ 800Rpm 495 N.m
Maximum Altitude At Which Continuous operation Is Allowed 3000 m
Supercharger outlet Exhaust Pressure limit Value  450 kPa
Maximum Power of Exhaust Brake 114 kW
——END——

Engine Performance Data Rated power of DCEC C220-10A Automotive Drive Engine

Rated Power Torque Peak Rated Power Torque Peak
Engine Speed 2400 RPM 1500 RPM Exhaust Temperature 625 ℃ 602 ℃
Oil Pressure 345 kPa 282 kPa Fuel Consumption 43 L/hr 26.9 L/hr
The Air Flow 18.9 m³/min 9.1 m³/min Coolant Flow N/A N/A
The Flow Rate of Pressurized Air N/A N/A Heat Loss Coolant 77 kW 60 kW
Pressurized Air Pressure N/A N/A Heat Loss Air 46 kW 14 kW
The Exhaust Flow 45 m³/min 21.3 m³/min Mechanical Loss of Power N/A N/A


System Technical Data of DCEC C220-10A Automotive Drive Engine

Air Intake System Maximum Temperature Rise Between Ambient Air and Engine Air Inlet 15
Maximum Intake Restriction with Dry Type Air Cleaner,with Clean Filter-Medium Duty 2.9 (300) kPa (mmH2O)
Maximum Intake Restriction with Dry Type Air Cleaner,with Clean Filter-Heavy Duty 3.7 (380) kPa (mmH2O)
Maximum Intake Restriction with Dirty Filter 6.2 (635) kPa (mmH2O)
Turbocharged & Intercooled Maximum Intake Manifold Temperature-Second Level 55
Maximum Intake Manifold Temperature-Three-Level 50
Intercooler Cooling Temperature-Second Level 25
Intercooler Cooling Temperature-Three-Level 20
Maximum Allowable Pressure Difference Before and After Intercooling-Three-Level 16.7 (125) kPa(mmHg)
Minimum Inlet Pipe Diameter Allowed-Three-Level 75 mm
Exhaust System Maximum Back Pressure Imposed by Complete Exhaust System 10.0 (75) kPa (mmHg)
Exhaust Pipe Size Normally Accepable 75 mm
Maximum Static Bend Allowed for Turbocharger Exhaust Flange N/A
Lubrication System Low oil Level Inclination Angle-Front Up 45 °
Low oil Level Inclination Angle-Back Up 45 °
Low oil Level Inclination Angle-Fuel Pump Side Up 45 °
Low oil Level Inclination Angle-Exhaust Side Up 45 °
Oil Sump Capacity-Upper Limit 14.2 L
Oil Sump Capacity-Lower Limit 12.4 L
Capacity of The Whole System 16.4 L
Cooling System Coolant Capacity – Engine only 9 L
Standard Thermostat (Modulating) Range 83 – 95
Minimum Fill Rate ( Without Low Level Alarm) 19 L/min
Minimum Coolant Expansion Space – % of System Capacity 6 %
Water Tank Capacity Without Water Expansion 6 L
Maximum Coolant Pressure (Without Pressure Cap, Thermostat Closed) 276 kPa
Maximum Degassing Time 25 mins
Maximum Coolant Flow to Accessories 41 L/min
Maximum Coolant Temperature Engine out 100
Minimum Allows Pressure of Pressure Cap 50 kPa
Minimum Recommended Coolant Temperature 70
Common Operating Temperature Range of Fans with Fan Clutch 93
Maximum Coolent Temperature For Engine Protection Control 100
The Limit Environmental Temperature at Rated Speed Second Level 45 ;Three-Level 42
The Limit Environmental Temperature at Peak Torque Second Level 40 ;Three-Level 37
24V Electrical System Maximum Allowable Resistance of Cranking Circuit 0.002
The Cold Start Current When Engine and The Clutch Separate 12 V 500 24 V 250
Cold Starting System Maximum Unaided Cold Start Temperature 120 RPM -10
Maximum Aided Cold Start Temperature 110 RPM -35
Fuel System Maximum Fuel Return Resistance 520 (mmHg)
Maximum Inlet Resistance of oil Pump with Clean Filter 150 (mmHg)
——END——

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
