PARTMAC FS/Fuel-filter
The FS series fuel-water separator is designed specifically for mainstream heavy-duty truck platforms such as the Auman GTL and FX, and is compatible with China V and China VI high-pressure common rail diesel engines. It is a core front-end protection component for the fuel system. Combining 10-30 micron coarse filtration and high-efficiency fuel-water separation, it can quickly separate free water from fuel and accurately intercept large particles, gum, and other contaminants. With a high fuel-water separation rate and excellent filtration efficiency, it prevents water corrosion and impurity wear on precision components such as fuel pumps and injectors from the source.
The product uses high-quality filter media, and its low flow resistance ensures efficient fuel flow and stable fuel supply. Suitable for harsh operating conditions such as long-distance transportation and engineering operations, it features a convenient drain valve for easier daily maintenance.
It effectively reducing the risk of fuel system failures, improving vehicle reliability, and extending the service life of the engine and fuel system, it is the preferred standard equipment for heavy-duty truck fuel protection, safeguarding efficient vehicle operation.
General Specifications of FS Series
| Series: | FS Series |
| Filter Type: | Fuel/Water Separator |
| Dimensions: | Outer Diameter (Width): 93.73 mm ~ 120 mm Height: 165 mm ~ 231 mm |
| Thread Specification: | 3/4″-16UNF，M24×1.5Threaded Interface |
| Filtration Precision: | 2~30μm |
| Filtration Efficiency: | ≥95~99.9% (for 10μm Particles) |
| Applicable Models/Platforms: | Weichai WP10 / FAW J6 and other heavy-duty diesel vehicles |
| Operating Conditions: | Operating Temperature -40℃~125℃; Operating Pressure ≤10bar |
| 5μm | ||||||||
| 5μm | ||||||||
| 5μm | ||||||||
| 5μm | ||||||||
| 5μm | ||||||||
| 5μm | ||||||||
| 5μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 5μm | ||||||||
| 4μm | ||||||||
| 3μm | ||||||||
| 2μm | ||||||||
| 4μm | ||||||||
| 3μm | ||||||||
| 8μm | ||||||||
| 7μm | ||||||||
| 8μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 10μm | ||||||||
| 6μm | ||||||||
Filtration Precision /μm | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 |
Part Name | Filtration Precision | Filtration Efficiency | Part Name | Filtration Precision | Filtration Efficiency | ||
| FS36279 | ≥5μm | ≥99.5% | FS20340 | 4μm | 99.7 | ||
| FS53016 NN | ≥5μm | ≥95% | FS20348 | 3μm | 99.9% | ||
| FS53040 NN | ≥5μm | ≥95% | FS20021 | 8μm | 99.6% | ||
| FS53041 NN | ≥5-30μm | ≥95% | FS20190 | 7μm | 99.7% | ||
| FS53048 NN | ≥5μm | ≥98% | FS20346 | 8μm | 99.6% | ||
| FS19925 | ≥5μm | ≥98% | FS1006 | 10μm | 98.7% | ||
| FS20336 | 5μm | ≥99.5% | FS1007 | 10μm | 99% | ||
| FS36209 | 10μm | ≥98% | FS1040 | 10μm | 99.2% | ||
| FS36268 | 10μm | ≥98% | FS1041 | 10μm | 99.3% | ||
| FS1098 | 10μm | ≥98.7% | FS1067 | 10μm | 99.4% | ||
| FS20019 | 10μm | ≥99% | FS19728 | 10μm | 99.5% | ||
| FS20165 | 10μm | ≥99% | FS19765 | 10μm | 99.6% | ||
| FS1067 | 10μm | ≥99.8% | FS20121 | 10μm | 99.2% | ||
| FS20336 | ≥5μm | ≥98.5% | FS01212 00MX | 10μm | 99.7% | ||
| FS20339 | 4μm | 99.9% | FS19732 00MX | 10μm | 99.6% | ||
| FS20347 | 3μm | 99.9% | FS53041 NN | 10μm | 99.8% | ||
| FS20383 | 2μm | 99.98% | FS20197 | 6μm | 99.8% | ||
| ——END—— | |||||||
PARTMAC FS Series Fuel Filter
This is the list of all series of PARTMAC FS Series Fuel Filter.
Click here to find Fuel Filter by type
Fleetguard FS20336 Fuel Filter
Fleetguard Filters | FS20336 Fuel Filter
Series: Cummins Series
Part Name: FS20336 Fuel Filter
Part Number: 1105100LD291
Applicable Platforms: Shuai Ling

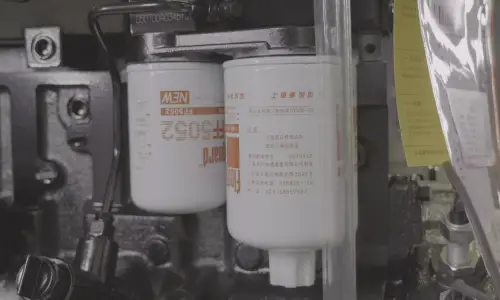

Fleetguard FS53041NN Fuel Filter
Fleetguard Filters | FS53041 NN Fuel Filter
Series:Heavy-Duty Fuel/Water Separator Series
Part Name: Fuel/Water Separator
Part Number: FS53041 NN
Applicable Platforms: Cummins, Foton Daimler, Shaanxi Automobile Heavy Duty Engines; suitable for hazardous chemical transportation tractors, long-haul trunk logistics vehicles, mining special dump trucks
Fleetguard FS20165 Fuel Filter
Fleetguard Filters | FS20165 Fuel Filter
Series: QSB7 Cummins Series
Part Name: FS20165 Fuel Filter
Part Number: 5523768
Applicable Platforms: QSB7
Fleetguard FS20019 Fuel Filter
Fleetguard Filters | FS20019 Fuel Filter
Series: QSB7 Cummins Series
Part Name: FS20019 Fuel Filter
Part Number: 5343578
Applicable Platforms: QSB7
Fleetguard FS1098 Fuel Filter
Fleetguard Filters | FS1098 Fuel Filter
Series: QSB7 Cummins Series
Part Name: FS1098 Fuel Filter
Part Number:5319680/5308722
Applicable Platforms: QSB7
Fleetguard FS36268 Fuel Filter
Fleetguard Filters | FS36268 Fuel Filter
Series: ISF Cummins Series
Part Name: FS36268 Fuel Filter
Part Number: LO110210714A0/LO110210106A0
Applicable Platforms: Aumark Series
Fleetguard FS36209 Fuel Filter
Fleetguard Filters | FS36209 Fuel Filter
Series: ISF Cummins Series
Part Name: FS36209 Fuel Filter
Part Number: VI11021000A10/1105911500005/G0110210704A0/5268019
Applicable Platforms: Monpace Series, Aoling Series,
Fleetguard FS1067 Fuel Filter
Fleetguard Filters | FS1067 Fuel Filter
Series: Cummins Series
Part Name: FS1067 Fuel Filter
Part Number: 1105010LE058/4934879
Applicable Platforms: Shuai Ling
Fleetguard FS19732 00MX Fuel Filter
Fleetguard Filters | FS19732 00MXFuel Filter
Series: Heavy-Duty Fuel/Water Separator Series
Part Name: Fuel/Water Separator
Part Number: FS19732 00MX
Applicable Platforms: Cummins, Volvo, Dongfeng Commercial Vehicle heavy-duty engines; suitable for heavy flatbed transporters, oversized cargo tractors, port stackers
Fleetguard FS01212 00MX Fuel Filter
Fleetguard Filters | FS01212 00MXFuel Filter
Series: Heavy-Duty Fuel/Water Separator SeriesZ
Part Name: Fuel/Water Separator
Part Number: FS01212 00MX
Applicable Platforms: Cummins, Deutz, Weichai heavy-duty engines; suitable for mining wide-body trucks, heavy dump trucks, fixed units of engineering mixing stations
Fleetguard FS20121 Fuel Filter
Fleetguard Filters | FS20121 Fuel Filter
Series:Heavy-Duty Fuel/Water Separator Series
Part Name: Fuel/Water Separator
Part Number:FS20121
Applicable Platforms: Cummins, Iveco, MAN heavy-duty engines; suitable for cold chain transport refrigerated trucks, heavy mixers, municipal sanitation special vehicles
Fleetguard FS19765 Fuel Filter
Fleetguard Filters | FS19765 Fuel Filter
Series: Heavy-Duty Fuel/Water Separator Series
Part Name: Fuel/Water Separator
Part Number: FS19765
Applicable Platforms: Cummins, Caterpillar, Komatsu heavy-duty engines; suitable for mining roadheaders, large loaders, oilfield fracturing equipment
Fleetguard FS19728 Fuel Filter
Fleetguard Filters | FS19728 Fuel Filter
Series: Heavy-Duty Fuel/Water Separator Series
Part Name: Fuel/Water Separator
Part Number: FS19728
Applicable Platforms: Cummins, Volvo, Scania heavy-duty engines; suitable for long-haul tractors, mining dump trucks, large generator sets
Fleetguard FS1067 Fuel Filter
Fleetguard Filters | FS1067 Fuel Filter
Series: Heavy-Duty Fuel/Water Separator Series
Part Name: Fuel/Water Separator
Part Number: FS1067
Applicable Platforms: Cummins, Mitsubishi Heavy Industries, Doosan heavy-duty engines; suitable for port handling equipment, heavy cranes, crawler-type construction machinery
Fleetguard FS1041 Fuel Filter
Fleetguard Filters | FS1041 Fuel Filter
Series: Heavy-Duty Fuel/Water Separator Series
Part Name: Fuel/Water Separator
Part Number: FS1041
Applicable Platforms: Cummins, Perkins, John Deere heavy-duty engines; suitable for mining dump trucks, large excavators, oilfield drilling equipment
Fleetguard FS1040 Fuel Filter
Fleetguard Filters | FS1040 Fuel Filter
Series:Heavy-Duty Fuel/Water Separator Series
Part Name: Fuel/Water Separator
Part Number:FS1040
Applicable Platforms: Cummins, Detroit Diesel, Mack heavy-duty engines; suitable for long-haul freight trucks, construction machinery, large emergency generator sets
Fleetguard FS1007 Fuel Filter
Fleetguard Filters | FS1007 Fuel Filter
Series:Heavy-Duty Fuel/Water Separator Series
Part Name: Fuel/Water Separator
Part Number: FS1007
Applicable Platforms: Cummins, Caterpillar, Volvo heavy-duty diesel engines; suitable for mining machinery, large generator sets, marine power systems
Fleetguard FS1006 Fuel Filter
Fleetguard Filters | FS1006 Fuel Filter
Series: Heavy-Duty Fuel/Water Separator Series
Part Name: Fuel/Water Separator
Part Number: FS1006
Applicable Platforms: Cummins, Detroit Diesel, Volvo heavy-duty engines; suitable for long-haul trucks, mining machinery, generator sets
Fleetguard FS20346 Fuel Filter
Fleetguard Filters | FS20346 Fuel Filter
Series: Sinotruk Cummins Series
Part Name: FS20346 Fuel Filter
Part Number: VG1092080052
Applicable Platforms: Shandeka/Howo
Fleetguard FS20190 Fuel Filter
Fleetguard Filters | FS20190 Fuel Filter
Series: Sinotruk Cummins Series
Part Name: FS20190 Fuel Filter
Part Number: WG9925550966
Applicable Platforms: Shandeka/Howo
Fleetguard FS20021 Fuel Filter
Fleetguard Filters | FS20021 Fuel Filter
Series: Sinotruk Cummins Series
Part Name: FS20021 Fuel Filter
Part Number: WG9925550105
Applicable Platforms:Shandeka/Howo
Fleetguard FS20348 Fuel Filter
Fleetguard Filters | FS20348 Fuel Filter
Series: Fuel/Water Separator Series
Part Name: FS20348 Fuel Filter
Part Number: FS20348
Applicable Platforms: Heavy Construction Machinery, Mining Equipment, Diesel Generator Sets
Fleetguard FS20340 Fuel Filter
Fleetguard Filters | FS20340 Fuel Filter
Series: FAW Cummins Series
Part Name:FS20340 Fuel Filter
Part Number: 1105050-2007|A
Applicable Platforms: FAW JH6/J6P/J7
Fleetguard FS20197 Fuel Filter
Fleetguard Filters | FS20197 Fuel Filter
Series: FAW Cummins Series
Part Name: FS20197 Fuel Filter
Part Number: 1105050-61C
Applicable Platforms: FAW 6DM3
Fleetguard FS20383 Fuel Filter
Fleetguard Filters | FS20383 Fuel Filter
Series: Weichai Cummins Series
Part Name: FS20383 Fuel Filter
Part Number: 1000053558/Fs20180
Applicable Platforms: Weichai WPI0/12/13
Fleetguard FS20347 Fuel Filter
Fleetguard Filters | FS20347 Fuel Filter
Series:Weichai Cummins Series
Part Name: FS20347 Fuel Filter
Part Number: 1000053557/Fs20181
Applicable Platforms: Weichai WP10/12/13
Fleetguard FS20339 Fuel Filter
Fleetguard Filters | FS20339 Fuel Filter
Series: Weichai Cummins Series
Part Name: FS20339 Fuel Filter
Part Number: 611600080112/Fs20196
Applicable Platforms: Weichai WP9H/10H
Fleetguard FS20336 Fuel Filter
Fleetguard Filters | FS20336 Fuel Filter
Series: ISF Cummins Series
Part Name: FS20336 Fuel Filter
Part Number: G0110210034A0/FSFS19732
Applicable Platforms:Aumark Series, Aoling Series
Fleetguard FS19925 Fuel Filter
Fleetguard Filters | FS19925 Fuel Filter
Series: Cummins Series
Part Name: FS19925 Fuel Filter
Part Number: 110501IP3010
Applicable Platforms: Shuailing, Xingrui
Fleetguard FS53048 NN Fuel Filter
Fleetguard Filters | FS53048NN Fuel Filter
Series: ISG/X Cummins Series
Part Name: FS53048 NN Fuel Filter
Part Number: SH411000000513A2076/
Applicable Platforms: Auman Series
Fleetguard FS53041 NN Fuel Filter
Fleetguard Filters | FS53041 NN Fuel Filter
Series: ISG/X Cummins Series
Part Name: FS53041 NN Fuel Filter
Part Number: S3694652A2076
Applicable Platforms: New ETX, GTL
Fleetguard FS53040 NN Fuel Filter
Fleetguard Filters | FS53040 NN Fuel Filter
Series: ISG/X Cummins Series
Part Name: FS53040 NN Fuel Filter
Part Number: SFS53040WUMXNNA2076
Applicable Platforms: New ETX, GTL,EST
Fleetguard FS53016 NN Fuel Filter
Fleetguard Filters | FS53016 NN Fuel Filter
Series: ISG/X Cummins Series
Part Name: FF53016 NN Fuel Filter
Part Number: SH4110219202A0-1A2076/
Applicable Platforms: New ETX, GTL,EST
Fleetguard FS36279 Fuel Filter
Fleetguard Filters | FS36279 Fuel Filter
Series: ISG/X Cummins Series
Part Name: FS36279 Fuel Filter
Part Number: SH4110210901A0A2076
Applicable Platforms: New ETX, GTL
